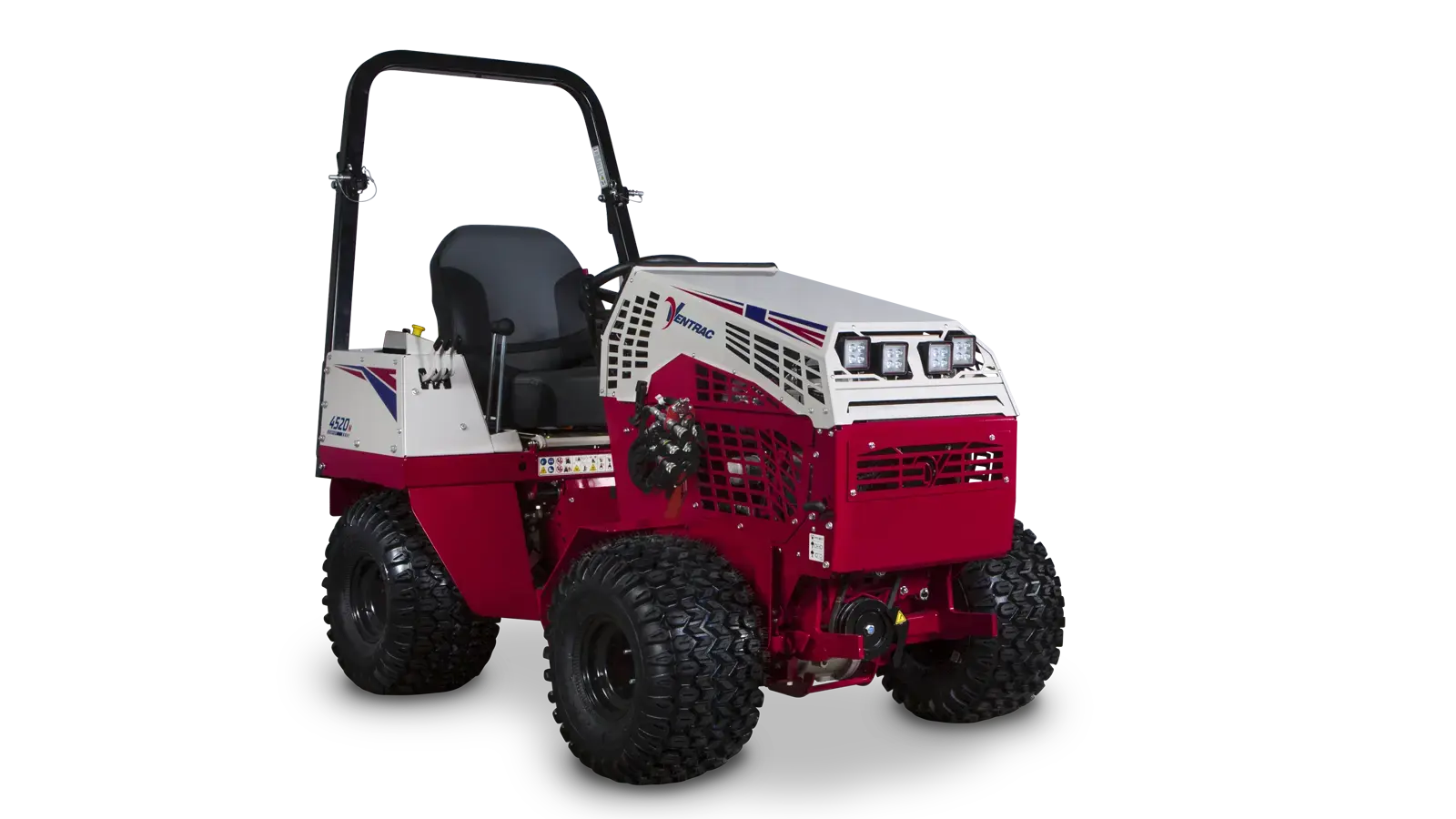

Engineered to outperform and built to last, the 4520 delivers the ideal balance of power, precision, and operator comfort. With front-mounted attachments for unmatched visibility, a pivoting frame for superior maneuverability, and balanced weight distribution for confident stability, the 4520 sets the benchmark for versatility in professional grounds care.
| Specification | 4520N | 4520P | 4520Y |
|---|---|---|---|
| Post Mower Dimensions | |||
| General | |||
| Turning Radius | 39in99.06cm | 39in99.06cm | 39in99.06cm |
| Ground Clearance | 5in12.7cm | 5in12.7cm | 5in12.7cm |
| Oscillation amount (@wheel) | 7.5in19.05cm | 7.5in19.05cm | 7.5in19.05cm |
| Engine | |||
| Cooling | Liquid | Liquid | Liquid |
| Engine Manufacturer | Kubota | Kawasaki | Kubota |
| Fuel Capacity | 6gal22.71l | 6gal22.71l | 6gal22.71l |
| Horsepower | 32.5hp32.5hp | 31hp31hp | 25hp25hp |
| Fuel Type | Gas | Gas | Diesel |
| Engine Disp. | cc | cc | cc |
| Num. of Cylinders | 3 | 2 | 3 |
| Model # | WG972-G-E4 | FD851D DFI | D902 |
| Peak Torque | 51ft-lbf69.15N-m | 47.1ft-lbf63.86N-m | 42ft-lbf56.94N-m |
| Est. Fuel Economy (W/ 60in Mower) | 1.2gal/hr4.542l/hr | 1.2gal/hr4.542l/hr | 1.1gal/hr4.164l/hr |
| Drive System | |||
| Drive | AWDAll Wheel Drive | AWD All Wheel Drive | AWD All Wheel Drive |
| Travel Speed - Low Range | reversereverse | reversereverse | reversereverse |
| Travel Speed - High Range | reversereverse | reversereverse | reversereverse |
| Dimensions | |||
| Overall Width | 48.5in123.2cm | 48.5in123.2cm | 48.5in123.2cm |
| Weight | 1700lb771.1kg | 1620lb734.8kg | 1705lb773.4kg |
| Overall Length | standard hitch, ROPS upstandard hitch, ROPS up | standard hitch, ROPS upstandard hitch, ROPS up | standard hitch, ROPS upstandard hitch, ROPS up |
| Height (ROPS up) | 68in172.7cm | 68in172.7cm | 68in172.7cm |
| Height (ROPS down) | 54in137.2cm | 54in137.2cm | 54in137.2cm |
| Weight with 3Pt hitch | 1780lb807.4kg | 1700lb771.1kg | 1785lb809.7kg |
| Wheelbase | 45in114.3cm | 45in114.3cm | 45in114.3cm |
| Tires | |||
| All Terrain | standard/optional22x12-8 | standard/optional22x12-8 | standard/optional22x12-8 |
| Turf | standard/optional22x11-10 | standard/optional22x11-10 | standard/optional22x11-10 |
