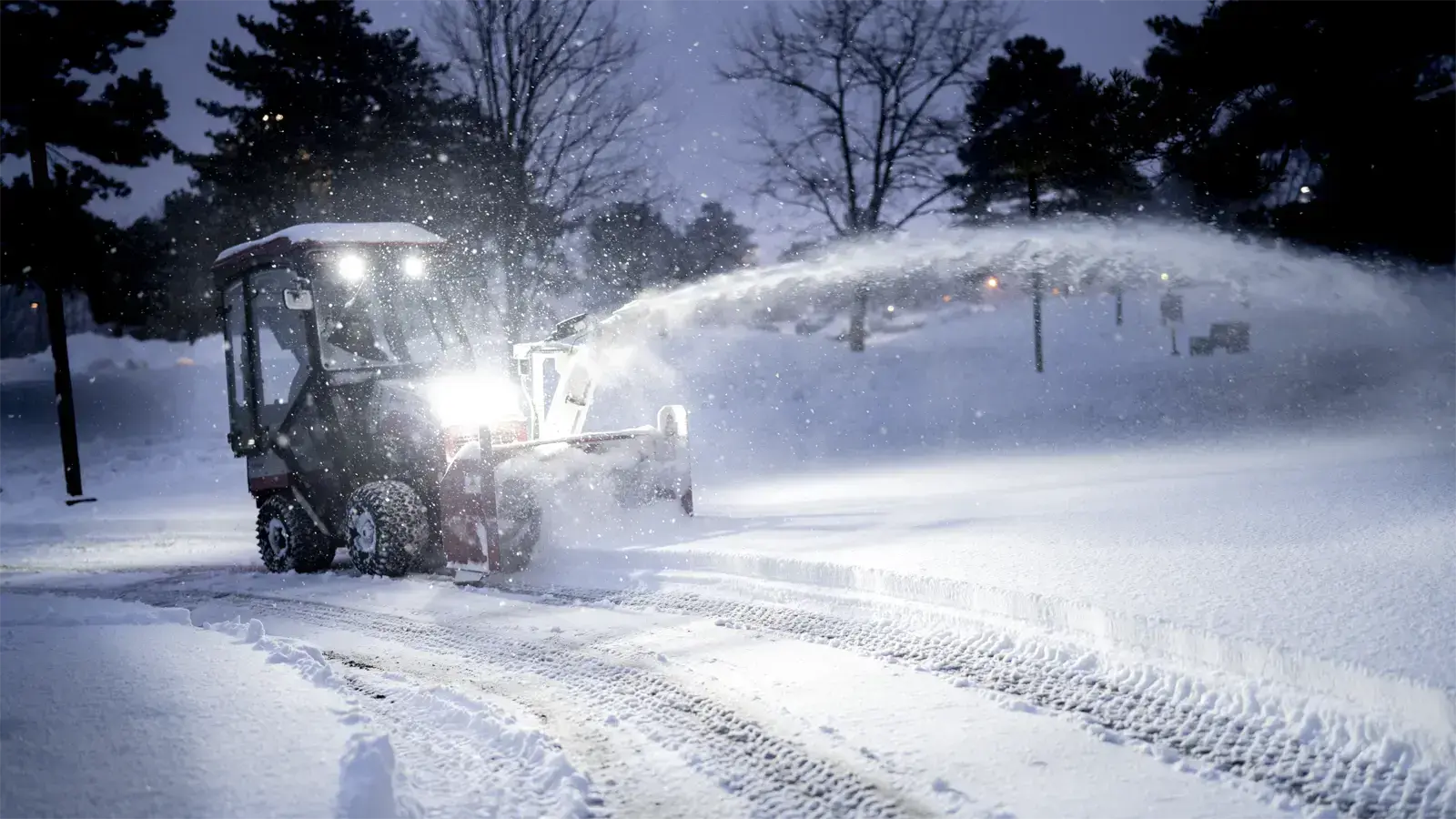

Ventrac Snow Blowers are built for commercial snow clearing operations of sidewalks, driveways, and other areas. Available in width options of 48" and 52", these two stage snow blowers feature a 16" diameter solid auger for best snow transfer, a large 20" diameter fan, and the ability to launch snow at distances up to 40 feet. Standard features include adjustable cast iron skid shoe discs at the rear, high carbon hardened steel shoes at the side, and a reversible high carbon hardened steel cutting edge. The hydraulically activated discharge chute can rotate 180 degrees, all from the convenience of the operator’s seat, using Ventrac's exclusive S.D.L.A. control system. Chute deflection is manually adjustable and an electric chute deflection controller is optional.
| Specification | KX523 | KX480 |
|---|---|---|
| Post Mower Dimensions | ||
| General | ||
| Blowing Distance | 35ft - 40ft Approx10.67m - 12.19m Approx | 35ft - 40ft Approx10.67m - 12.19m Approx |
| Cutting Height | 26.5in (no aux. auger)67.31cm (no aux. auger) | 26.5in (no aux. auger)67.31cm (no aux. auger) |
| Chute Rotation | 180°180° | 180°180° |
| Directional Control | Hydraulic | Hydraulic |
| Aux. Auger Dia. | 8in20.32cm | 8in20.32cm |
| Fan Diameter | 19.5in49.53cm | 19.5in49.53cm |
| Main Auger RPM | 197rpm197rpm | 197rpm197rpm |
| Auger Diameter | 16in40.64cm | 16in40.64cm |
| Snow Capacity | 4500lb/min2041kg/min | 4500lb/min2041kg/min |
| Fan RPM | 790rpm790rpm | 790rpm790rpm |
| Overall Width | 52in132.1cm | 48in121.9cm |
| Dimensions | ||
| Length | 49in124.5cm | 49in124.5cm |
| Overall Width | 52in132.1cm | 48in121.9cm |
| Height | 56.5in143.5cm | 56.5in143.5cm |
| Weight | 517lb234.5kg | 490lb222.3kg |
| Width with Wings | 52.75in134cm | 48.75in123.8cm |
